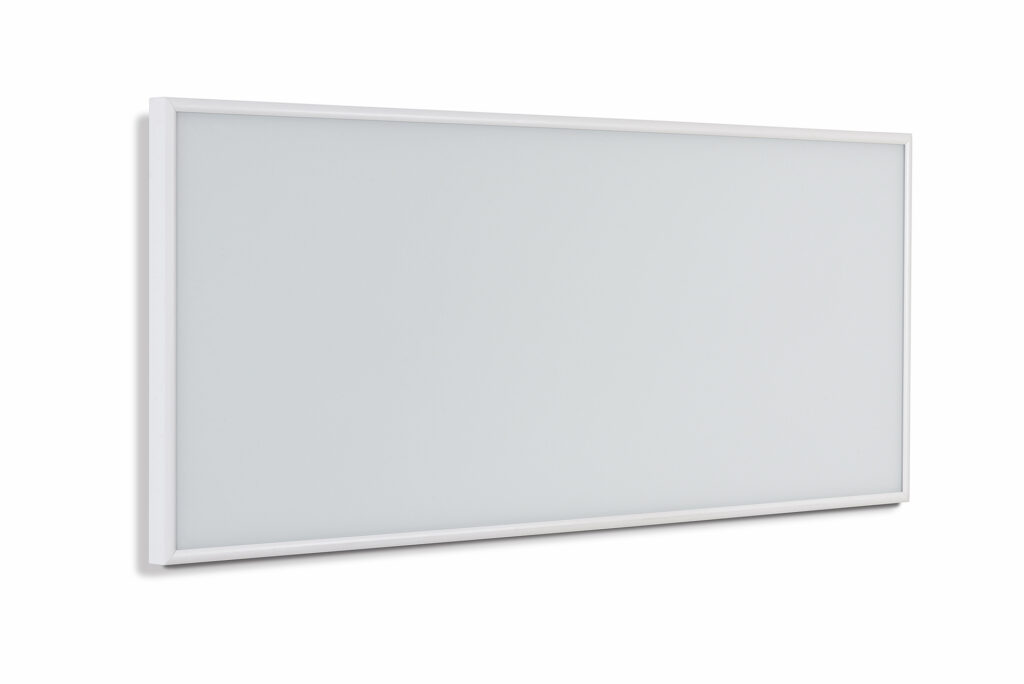

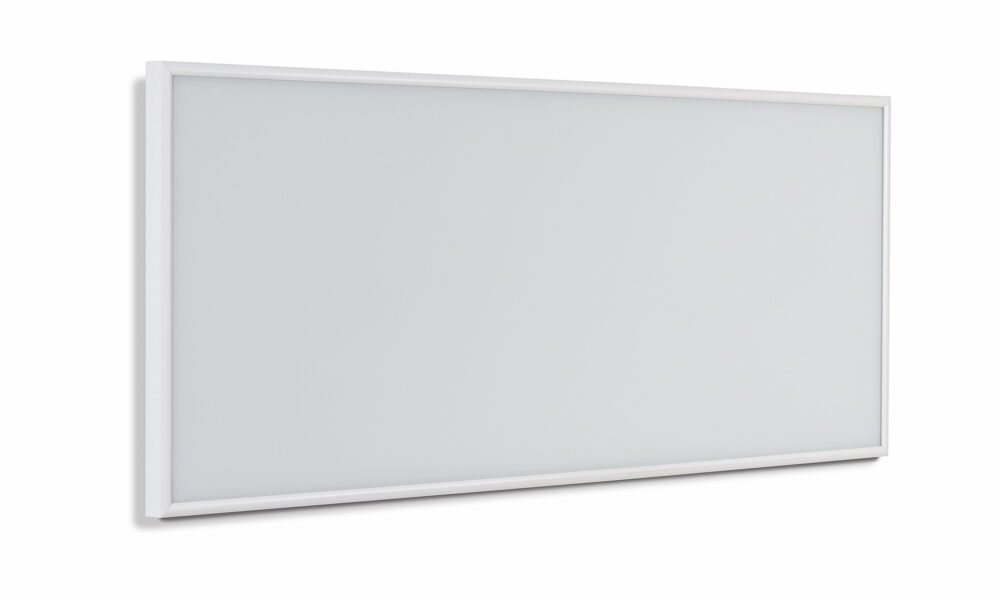

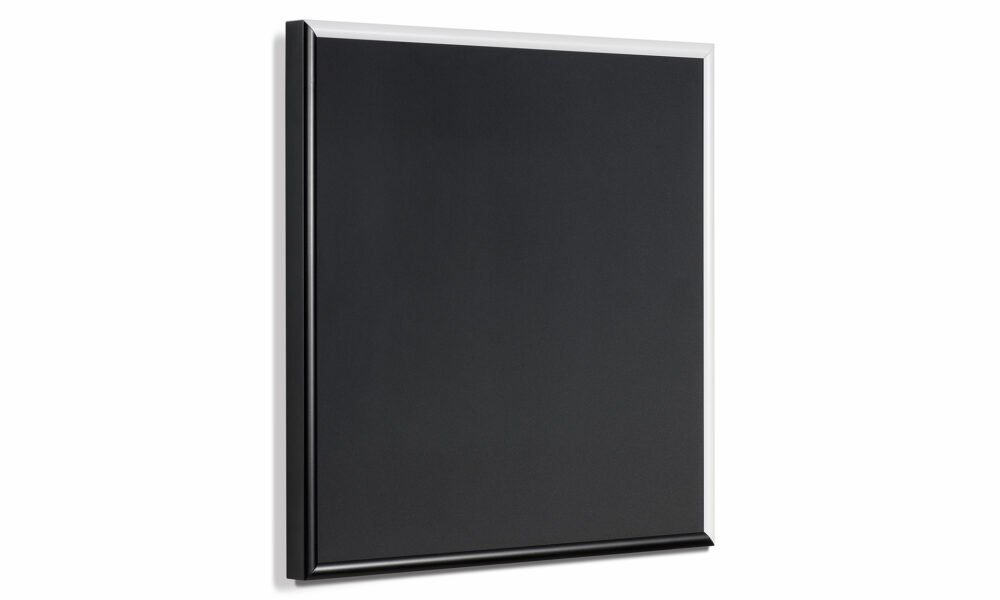

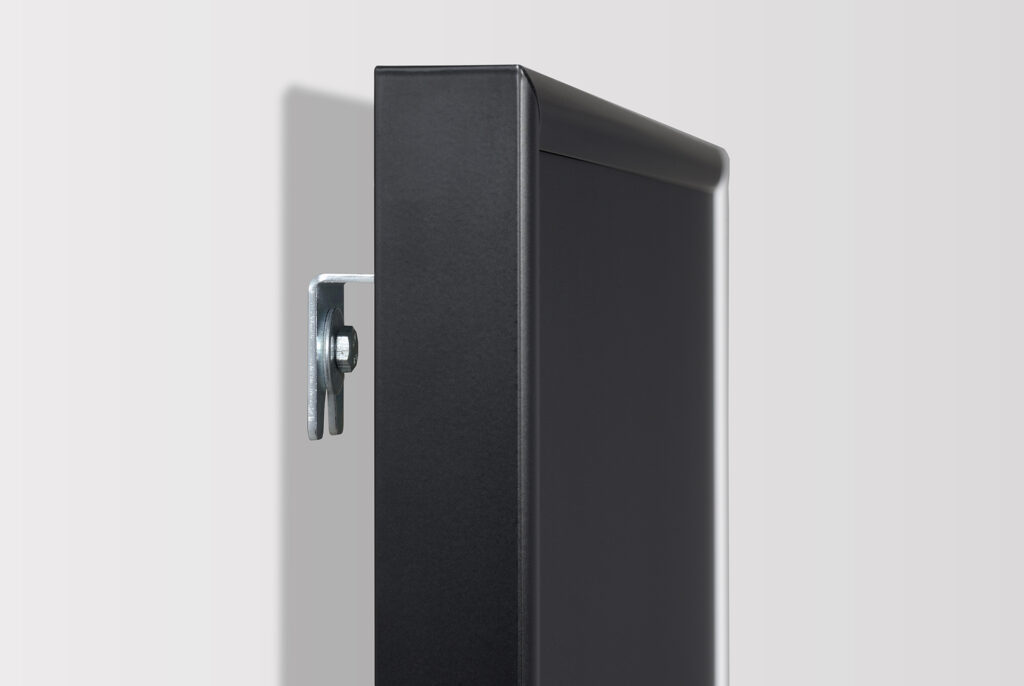

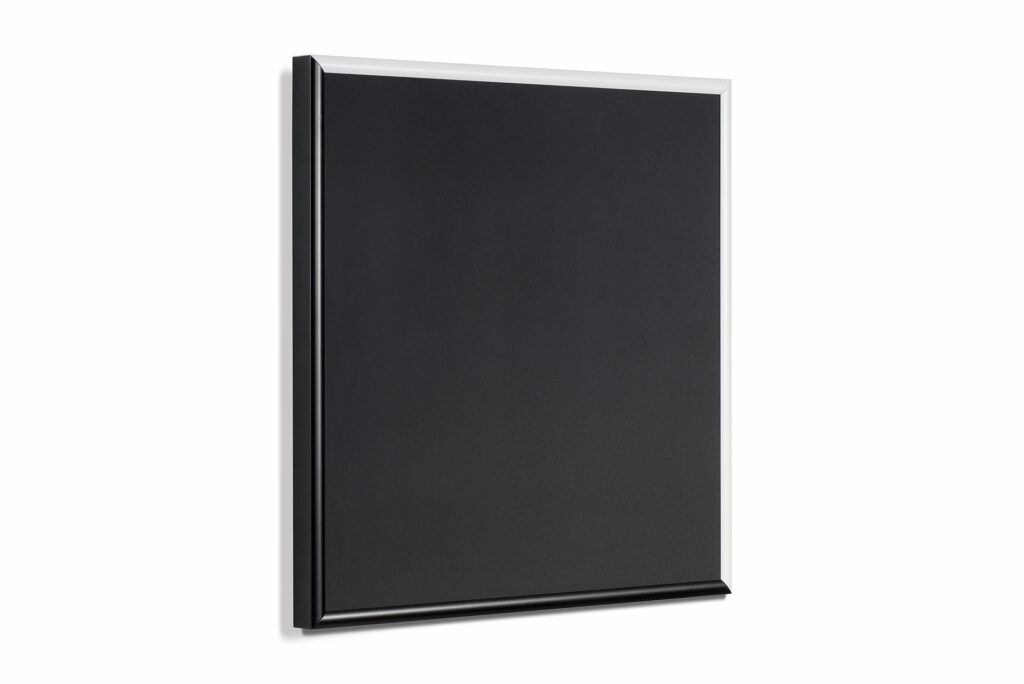

Clean and simple, this is how the frame design of infrared panels can be described in a nutshell. The front is made of 4 mm thick clear ESG safety glass, with a design anodised frame around the perimeter of the panel. The frame can be supplied in any colour on request. The back is made of aluminium sheet metal. The depth of the bare panel is 36 mm, and the total depth with brackets for wall or ceiling mounting is 66 mm.
INFRARED HEATING PANELS FRAME

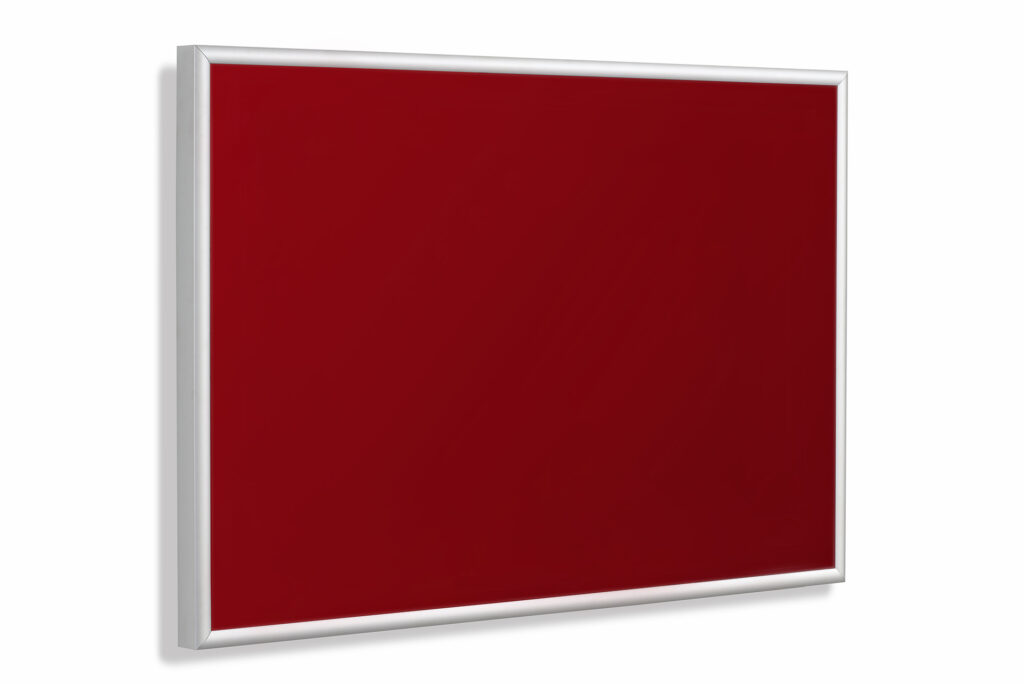

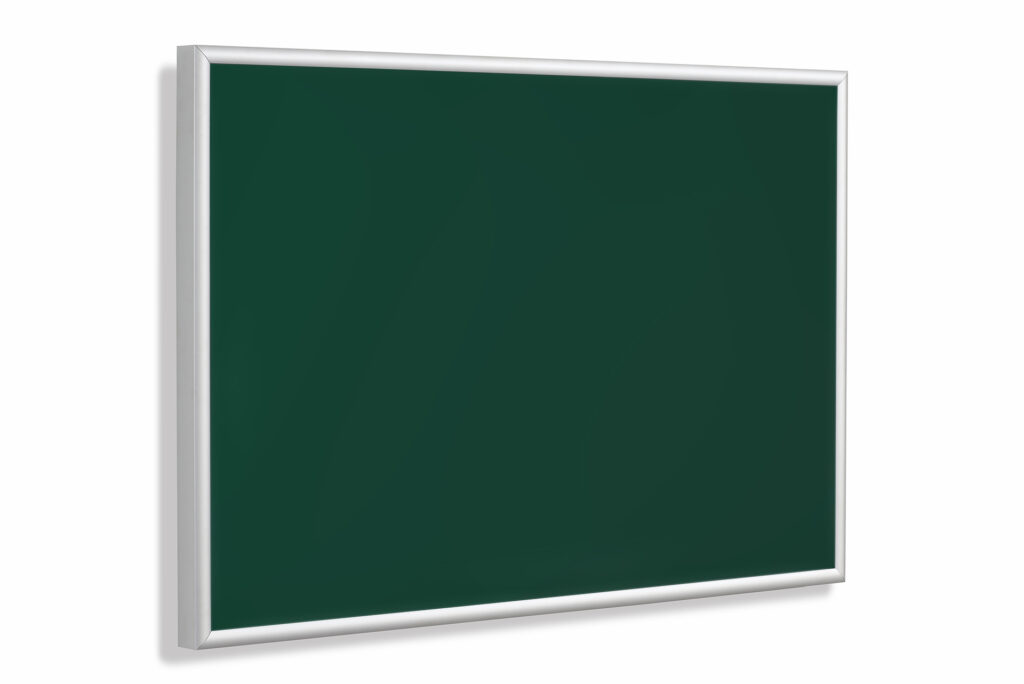

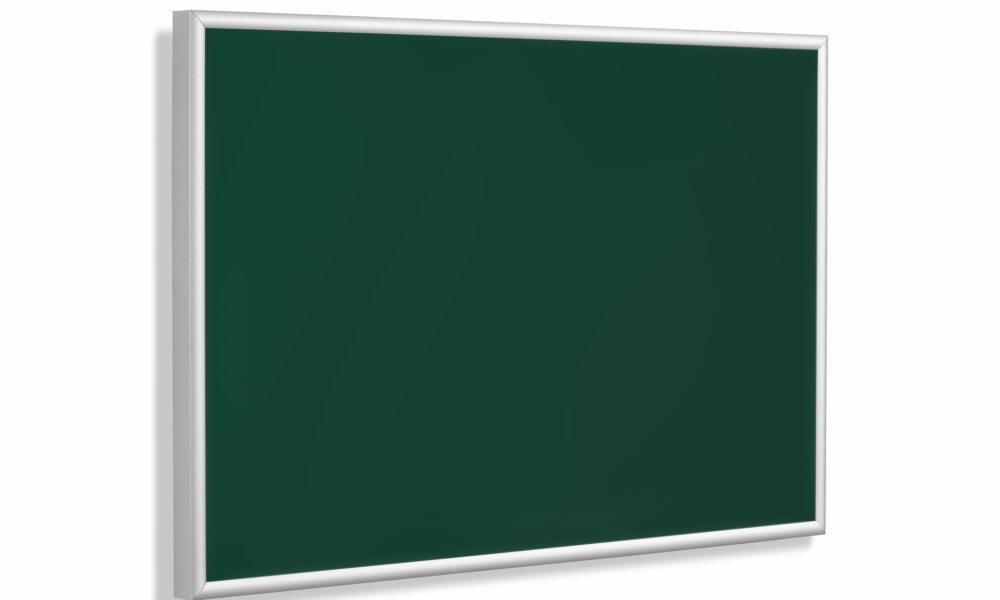

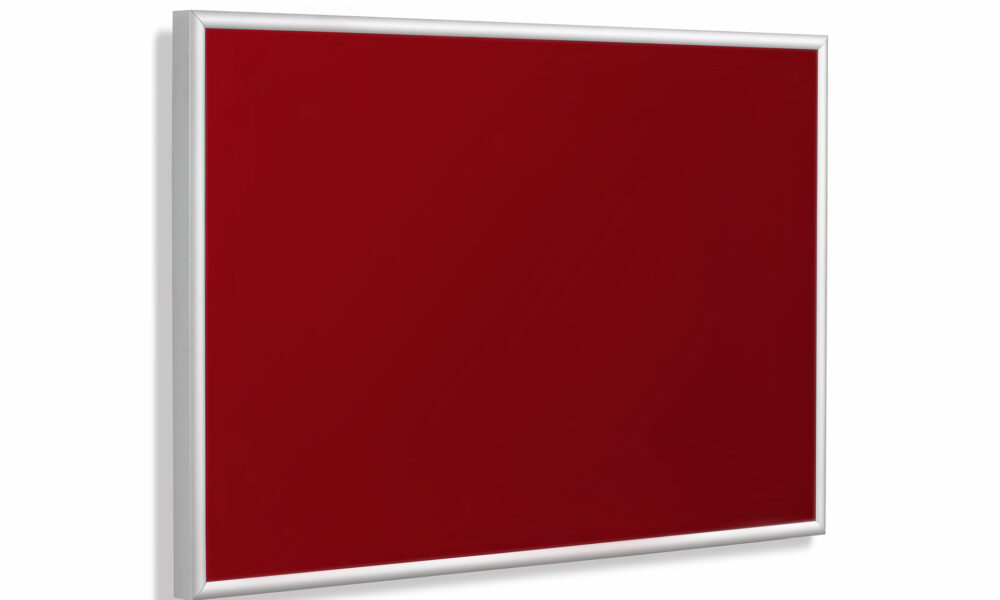

Glass colour options: Basic white/black; it can be ordered with any colour on request (RAL colour chart)
Frame colour options: Basic anodised layer (ELOX); it can be ordered with any colour on request (RAL colour chart)

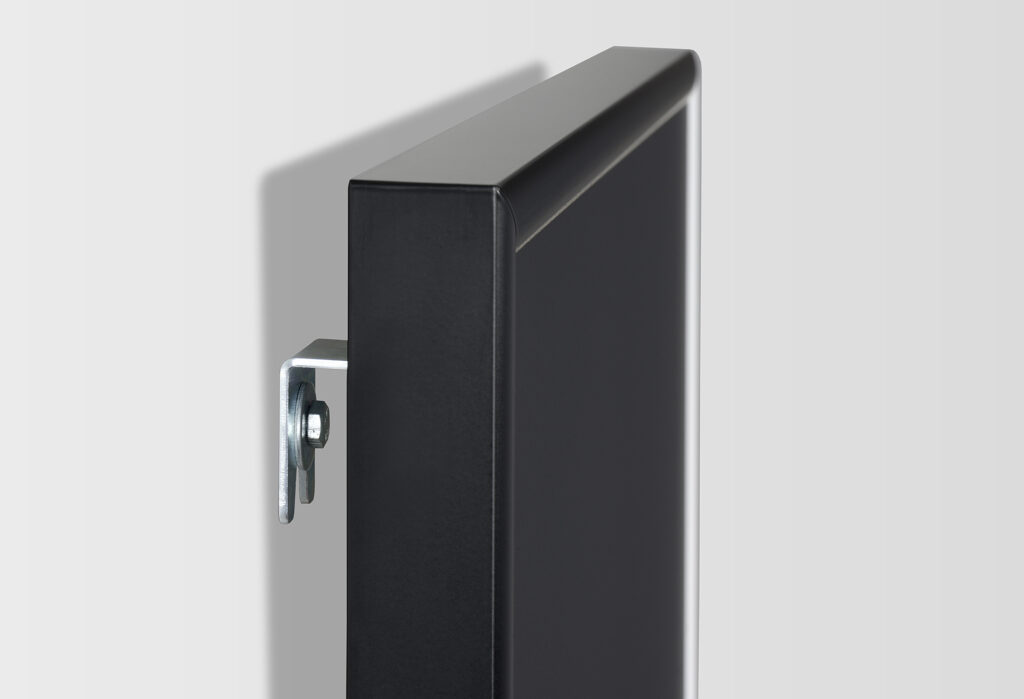

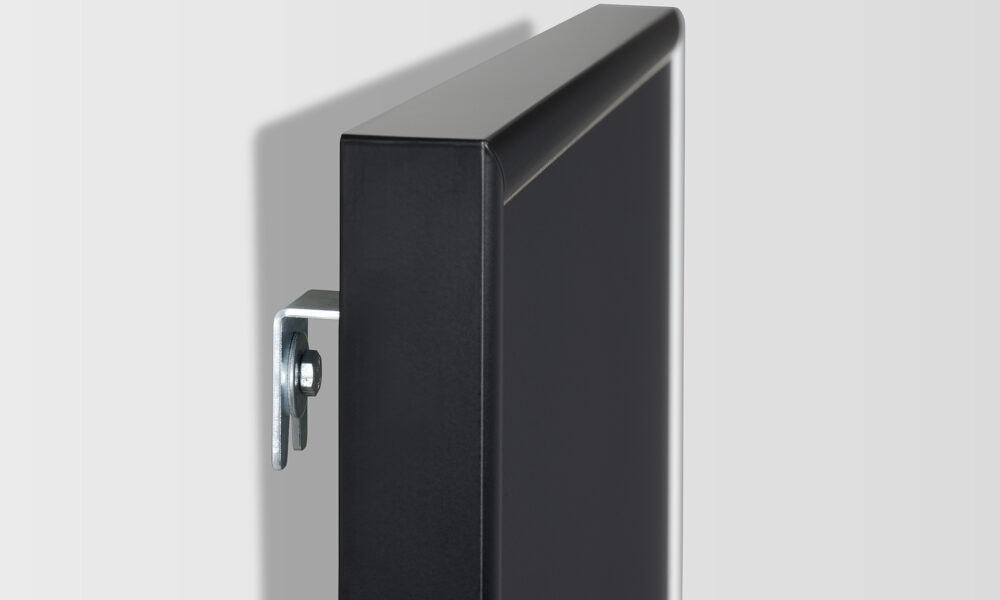

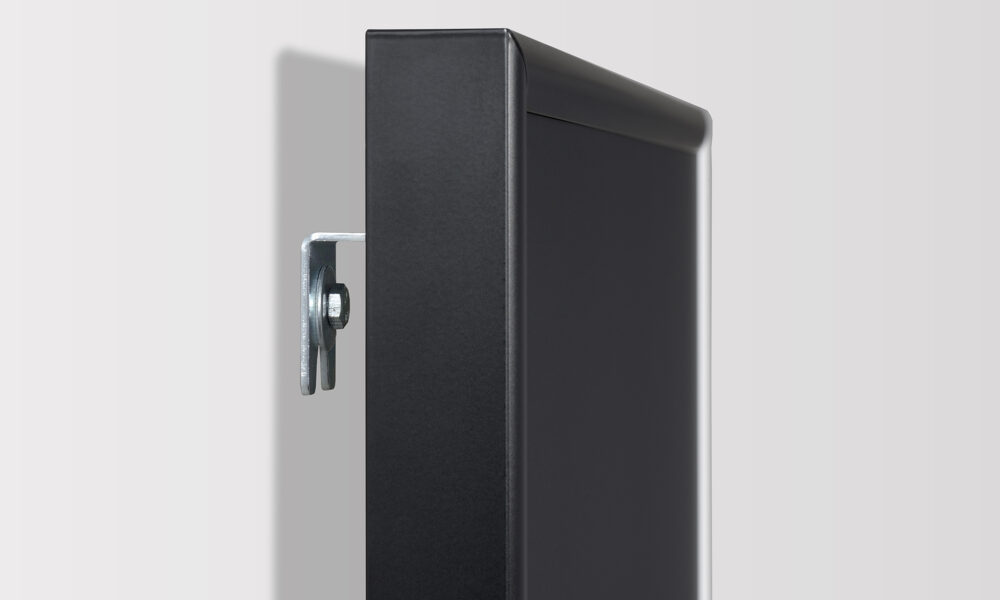

Mounting: For wall and ceiling mounting
Surface temperature: 130 °C for wall mounting, 150 °C for ceiling mounting (higher surface temperature indicates higher thermal efficiency)
Safety fuse: An integral part of each panel
Packaging: Supplied in a cardboard box with a complete assembly kit, instructions and template for precision drilling of holes
Types:
- Infrared heating panels Basic with no temperature control (thermostat)
- Infrared heating panels with Wist NG thermostat on the back of the panel controlled by a wireless thermostat or through a phone with Wi-Fi connection
VARIANTS
1300W 150x60cm
1000W 120x60cm
800W 90x60cm
500W 60x60cm
230W 30x60cm
PACKAGE CONTENTS
